Reel Handler Attachment
Adjustable reel handling sleeves
Since our founding in 1974, we have proudly been the first company in the UK to create a variety of mechanical forklift attachments, continuously supporting the material handling industry. Rest assured, you're in good hands!
All our products come fully tested and certificated in accordance with the Machinery Directive (Directive 2006/42/EC of the European Parliament) and UKCA requirements. We take Health & Safety seriously, and in doing so ensure you're supplied with a product that meets all HSE requirements.
Pricing & Payment
All prices shown are in GBP and exclude VAT as default.
Delivery
We deliver nationwide and overseas, however, deliveries outside of the UK Mainland would require us to obtain additional shipping charges from our shipping agent, so please allow a little extra time for this during quoting.
Reel Handler Attachment

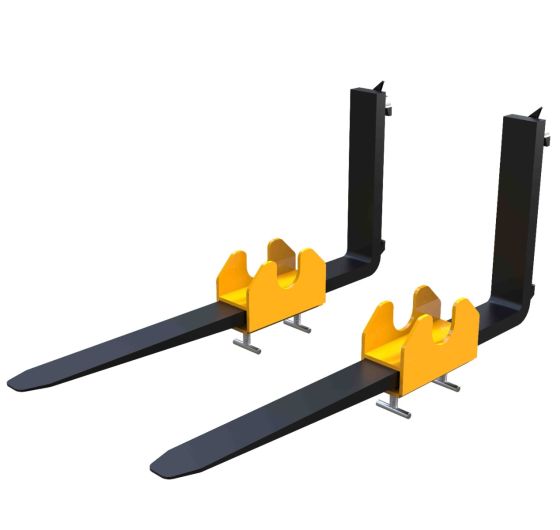

Safely handle cable reels and similar rolled products with the Reel Handler Attachment (FM-RH-ADJ), a fork-mounted forklift attachment designed for warehouses, manufacturing, and logistics environments.
These adjustable sleeves slip over forklift forks and secure with 'T' screw retainers, offering a 1000kg safe working load (SWL) per pair. Available for fork sizes of 100x50mm, 125x60mm, or 150x60mm, they are tailored to specific spindle diameters for a snug fit, ensuring secure and efficient handling.
Fully compliant with the Machinery Directive (2006/42/EC), these reel handlers are UKCA-marked, and comes with a 3-year warranty and a Certificate of Conformity. Since 1974, we’ve pioneered UK material handling solutions, delivering reliable products to enhance safety and productivity. Specify fork size and spindle diameter when requesting a quote to ensure compatibility.
Why Buy Reel Handler Attachment?
- Secure Handling: 'T' screw retainers ensure safe and stable attachment to forklift forks.
- Custom Fit: Adjustable along fork length and tailored to spindle diameter for precise handling.
- High Capacity: 1000kg SWL per pair, suitable for various cable reels.
- Compliance & Warranty: UKCA-marked, with a 3-year warranty.
Since 1974, we’ve led innovation in UK material handling solutions, delivering products to enhance safety and efficiency. The Reel Handler Attachment provides a reliable, tailored solution for handling cable reels.
Product Specifications
| Model Ref | To Suit Max Fork Section Size (mm) | FM-RH-ADJ-100x50 | 100 x 50 | 1000 |
|---|---|---|---|---|
| FM-RH-ADJ-125x60 | 125 x 60 | 1000 | ||
| FM-RH-ADJ-150x60 | 150 x 60 | 1000 |
Request a quote for Reel Handler Attachment or call +44 (0)1686 611200 for bespoke solutions.
Key Features
- Adjustable Design: Adjustable along fork blade length for flexible positioning.
- Secure Attachment: 'T' screw retainers ensure safe and stable connection to forklift forks.
- High Capacity: 1000kg safe working load (SWL) per pair for reliable reel handling.
- Customizable: Manufactured to suit specific spindle diameters for a snug fit.
- Compliance & Warranty: UKCA-marked, certified to Machinery Directive (2006/42/EC), with a 3-year warranty.
Benefits
- Ensures safe handling of cable reels with secure, tailored attachment to forks.
- Reduces downtime with quick and easy installation on various fork sizes.
- Fully tested and certificated per the Machinery Directive (2006/42/EC) for reliable performance.
- Ideal for warehouses, manufacturing, and logistics requiring efficient cable reel handling.
